new2025

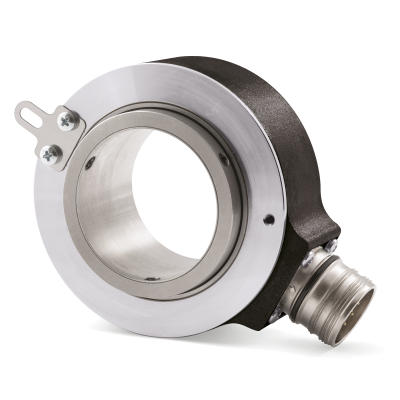

CP82 Large Thru-Bore Programmable Incremental Encoder
The well-known C82 large thru-bore incremental rotary encoder from Lika Electronic is now available in a programmable version. The new CP82 offers complete programmability, ensuring versatility to perfectly meet a wide range of specific industrial requirements.
• Full programmability: resolution, Index mark position and duration, and counting direction
• Resolution from 1 to 65,536 pulses per revolution (PPR)
• Through hollow shaft with diameters ranging from 30 to 44 mm, equipable with reducing sleeves
• Rated up to IP65 with an extended operating temperature range
• Cable and M23 connector outputs

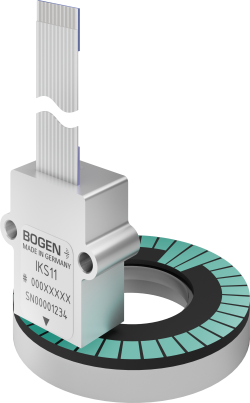

IKS11 Miniature Incremental Encoder for Linear and Rotary Applications
The IKS11 miniature magnetic incremental encoder from Lika Electronic combines a very small size with a high resolution of up to 20 nanometres, alongside a wealth of features that ensure excellent versatility and customisation for nearly any industrial application.
• Miniature housing: 13 mm (W) x 14 mm (H) x 6 mm (D)
• Magnetic technology without contact and wear
• Resolution of up to 20 nanometres
• AB0, /AB0 + Reference outputs, Push-Pull and Line Driver circuits
• Low voltage power supply options: +5Vdc or +3.3Vdc
The IKS11 is perfect for integration into various industrial applications where minimum size and reliability are prerequisite, such as embedded motion control systems in OEMs, cameras and video surveillance systems, electromedical equipment, and printing machines. Additionally, the countless customisation possibilities make it an ideal choice for almost any application.
IM28, the miniature encoder housed in a robust and protective casing
The IM28 incremental rotary encoder features a miniature yet rugged housing with protection up to IP69K and offers a resolution of up to 20,000 PPR. It is ideal for use in confined spaces across general-purpose industrial applications, electro-medical devices, and office equipment.
• Miniature encoder with a rugged housing
• Protection up to IP69K
• High resolution of up to 20,000 PPR
• Digital signals via Push-Pull, Line Driver, and Universal circuits
Its characteristics allow the IM28 to be installed in industrial applications where space is very limited and conditions can be harsh, such as factory automation, electro-medical devices, packaging lines, textile machines, and office equipment.

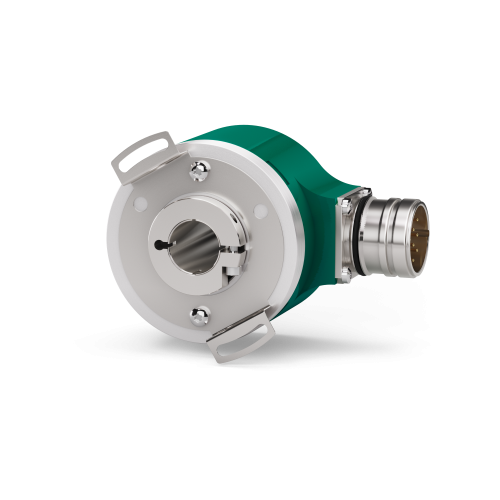

EHCT59: The New Through-Hollow-Shaft Absolute Encoder
The new EHCT59 absolute encoder is marked by its through hollow shaft and the integration of the EHG (Energy Harvesting Generator) technology platform. It offers a high single-turn resolution of up to 25 bits using optical sensing (total resolution can reach up to 32 bits) and the SSI and BiSS interfaces. In specific versions, it also provides square wave or sine/cosine signals.
• Through-hollow-shaft encoder
• Single-turn and multi-turn absolute versions with SSI and BiSS interfaces
• Precise optical sensing technology
• Multiturn versions featuring the EHG (Energy Harvesting Generator) technology platform
• Up to 25-bit single-turn resolution and up to 32-bit total resolution

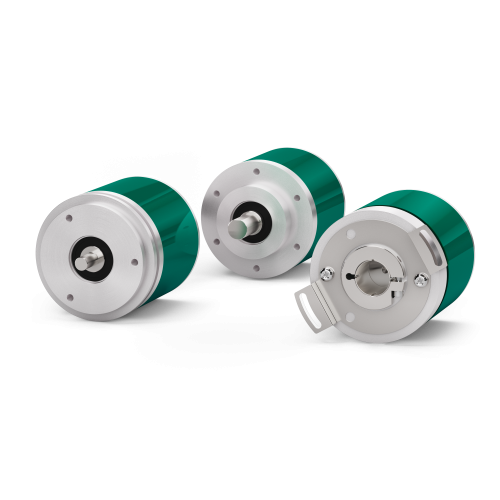

EHM58 and EHO58 Absolute Encoders with EHG Energy Harvesting Generator
Lika Electronic has launched the EHM58 and EH058 series of absolute encoders.
These encoders feature either magnetic or optical scanning and incorporate the EHG Energy Harvesting Generator technology platform. They provide high resolutions and a variety of mechanical and electrical options, and offer SSI and BiSS interfaces along with additional incremental signals.
• Singleturn and multiturn absolute encoders with SSI and BiSS interfaces
• Robust magnetic (EHM58) or precise optical (EHO58) sensing technology
• Integrate the EHG Energy Harvesting Generator technology platform
• 58 mm standard industrial flanges with multiple mounting options
• Wide Xion of solid and blind hollow shafts
• Up to 24 bit singleturn resolution and up to 32 bit total resolution
They are ideally suited for advanced industrial automation applications, including packaging machinery, the food and beverage industry, metal and plastic working machinery, woodworking machinery, stone and marble processing machines, production and processing lines for paper and board, textile machinery, conveyor systems, and handling systems, etc.
IF100 Calibration Tool: Optimizing Encoder Performance
All of Lika Electronic's kit encoders and modular encoders are pre-calibrated and ready for installation in the customer's application. To meet the most demanding requirements, the new IF100 calibration tool allows the user to achieve optimal calibration and superior encoder performance within the final application.
It is compatible with the SMAR1, SMAR4, SMRAM, AKP18, AKS16, and AKS17 encoders from Lika and Bogen.
• Complete hardware & software solution for encoder calibration directly “on site”
• For SSI/BiSS kit encoders and modular encoders
• Free of charge user-friendly and intuitive interface

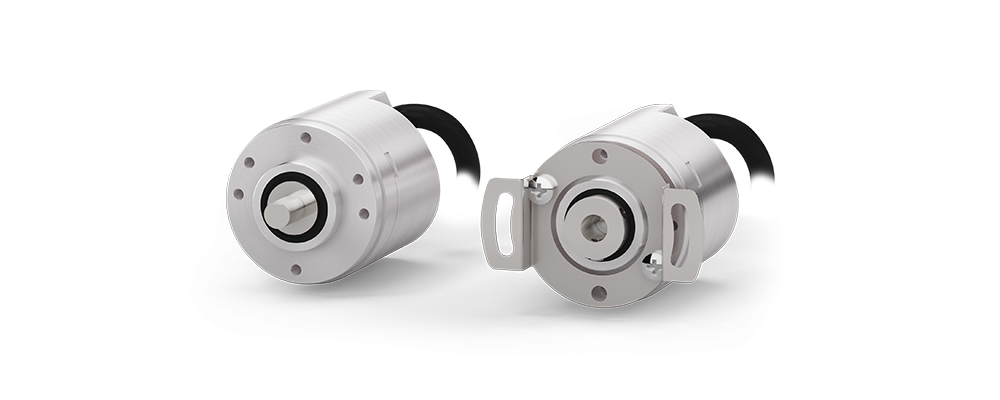

EHO36 and EHM36 miniature absolute encoders integrate Energy Harvesting Technology
The EH036 and EHM36 miniature absolute encoders are built in a very compact and rugged
36-mm housing; they are perfect for constricted spaces and challenging industrial environments.
They integrate the Energy Harvesting Technology and offer very high singleturn and multiturn resolutions up to 36 bits.
• Singleturn and multiturn encoders with SSI and BiSS interfaces
• Optical and magnetic sensing versions
• Integrate the Energy Harversting Technology, gear- & battery-less
• Compact and rugged design with a 36 mm diameter flange
• Available with a 6-mm solid or blind hollow shaft
• Up to 24-bit singleturn and up to 36-bit multiturn resolutions

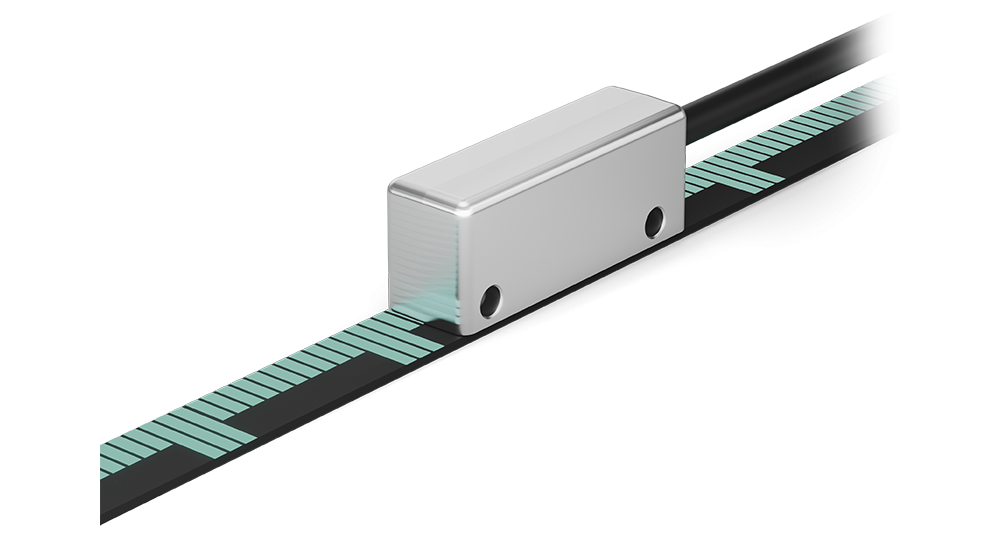

New SME91 and SME92 incremental linear encoders with reference marks integral
to the magnetic tape
The new SME91 and SME92 incremental linear encoders are well suited to demanding motion control needs in linear motors. They are capable of providing a reference signal for each pole,
every 20 mm, every 50 mm, and in any custom position along the travel, according to specific requirements.
• For demanding position and speed feedback needs
• Resolution down to 50 nm
• Travel speed up to 100 m per second
• IP67 protection rating
• Optional reference marks integral to the magnetic tape
Standard & Custom Rings for Incremental and Absolute Applications
Lika Electronic designs and manufactures a comprehensive range of magnetic rings, segmented rings, arcs, and curved structures. Our portfolio includes MRI and MRA standard rings for incremental and absolute measurement tasks as well as tailored rings designed to meet individual demands.
In order to fit each application exactly, can be evaluated from time to time:
• dimensions
• shapes
• materials
• mounting methods
• patterns
• application environments
Signal Converters and Devices for Integration of Incremental and Absolute Encoders
The range of the IF series devices from Lika Electronic is the answer to your any needs for converting, interpolating, amplifying, and splitting incremental and absolute encoder signals. Needful for retrofitting operations, they often add new and ancillary functions.
• Varied range of converters, interpolators, amplifiers, splitters, gateways, ...
• Designed for incremental and absolute encoders
• Simple devices with basic functions
• Advanced devices with complete programmability and additional functions
• DIN rail mounting
For more information on the comprehensive range of interfaces of the Posicontrol product family please refer to the address page
Screws, Washers, and Plugs for Standard and Special Applications
Lika Electronic offers a huge range of high-quality screws, nuts, washers, and plugs for standard and special applications. It includes among others micro screws, security screws, and functional screws as well as customized screws with non-standard processing, material, surface treatment, head and drive shape.
Special screws are designed to meet the requirements of individual industrial sectors such as the food and packaging machinery, medical devices (biochemical analyzers, CT scans, MRI machines, etc.), equipment for manufacturing processes (semiconductor, photolithography, coating, physical and electrical inspection equipment, etc.).
Draw-Wire Encoders for Unusual Measuring Requirements
Lika Electronic offers a complete range of draw-wire encoders. They can be optical or magnetic, with incremental, absolute, or analogue outputs (a potentiometer can also be integrated) and a choice of measuring lengths from 300 mm (0.984 ft) up to 50 m (164 ft). They are a good solution for unconventional measuring requirements, for instance, for indirect measuring paths, or when the operational space is constricted, or the environmental conditions are severe.
• Measuring lengths can be 300 mm (0.984 ft), 1 m (3.28 ft), 1.5 m (4.92 ft), 2 m (6.56 ft),
5 m (16.4 ft), 10 m (32.8 ft), and longer, up to 50 m (164 ft)
• Any type of encoder can be integrated: incremental, absolute, fieldbus, Ethernet,
analogue (including potentiometer), ATEX, special models for individual applications
• Resolution down to 0.01 mm / 10 µm
• Speed up to 10 m per second / 32.8 ft per second
