new2026

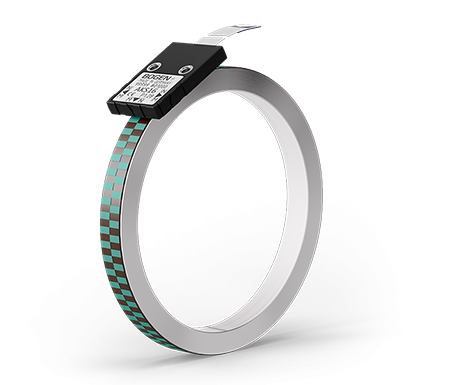

AKS16 Absolute Encoder: the Perfect Fit for Large-Shaft Motors and Applications
Lika Electronic's AKS16 magnetic absolute modular encoder, combined with MRA rings featuring an outer diameter of up to 65 mm and an inner diameter of up to 55 mm, is designed to provide reliable, contactless position and speed feedback for motors and applications with large-diameter shafts.
• Ultra-compact size designed to fit into confined spaces
• Single-turn resolution of up to 20 bits; multi-turn resolution of up to 28 bits (with battery)
• SSI and BiSS absolute interfaces
• Additional AB0, UVW, and STEP optional signals
• Paired with the 55 mm inner diameter rings, suitable for large-shaft motors and applications

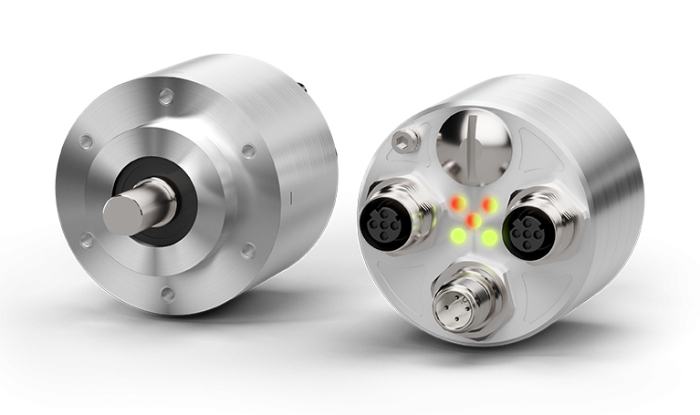

EXM58 and EXO58 Ethernet Encoders with Programmable Speed Switch Functionality
Lika Electronic's EXM58 and EXO58 absolute rotary encoders with Ethernet interfaces can be equipped with a programmable digital Speed Switch function to enhance machinery's operational safety. The system monitors the encoder's speed and activates the integral relay when the speed deviates from the thresholds specified via the web server.
• Absolute encoders fully compliant with popular Ethernet interfaces
• Programmable Speed Switch function for speed monitoring
• Precise optical or robust magnetic sensing technologies
• Multi-turn versions incorporate the EHG (Energy Harvesting Generator) technology platform
• Solid and blind hollow shaft versions
• Integrated web server and firmware update functionalities
SMAR49A Off-Axis Absolute Modular Encoder
Lika Electronic's SMAR49A off-axis absolute modular encoder is designed to fit directly into space-critical, high-performance applications, such as industrial robots and motors. It is also suitable for exact replacement in existing installations.
• Off-axis absolute modular encoder
• Contactless and wear-free magnetic technology
• SSI, BiSS C-mode, and SPI absolute interfaces
• Resolutions of up to 19 bits for single-turn and up to 16 bits for multi-turn (up to 35-bit total resolution)
• Suitable for direct replacement in existing installations without the need for modifications

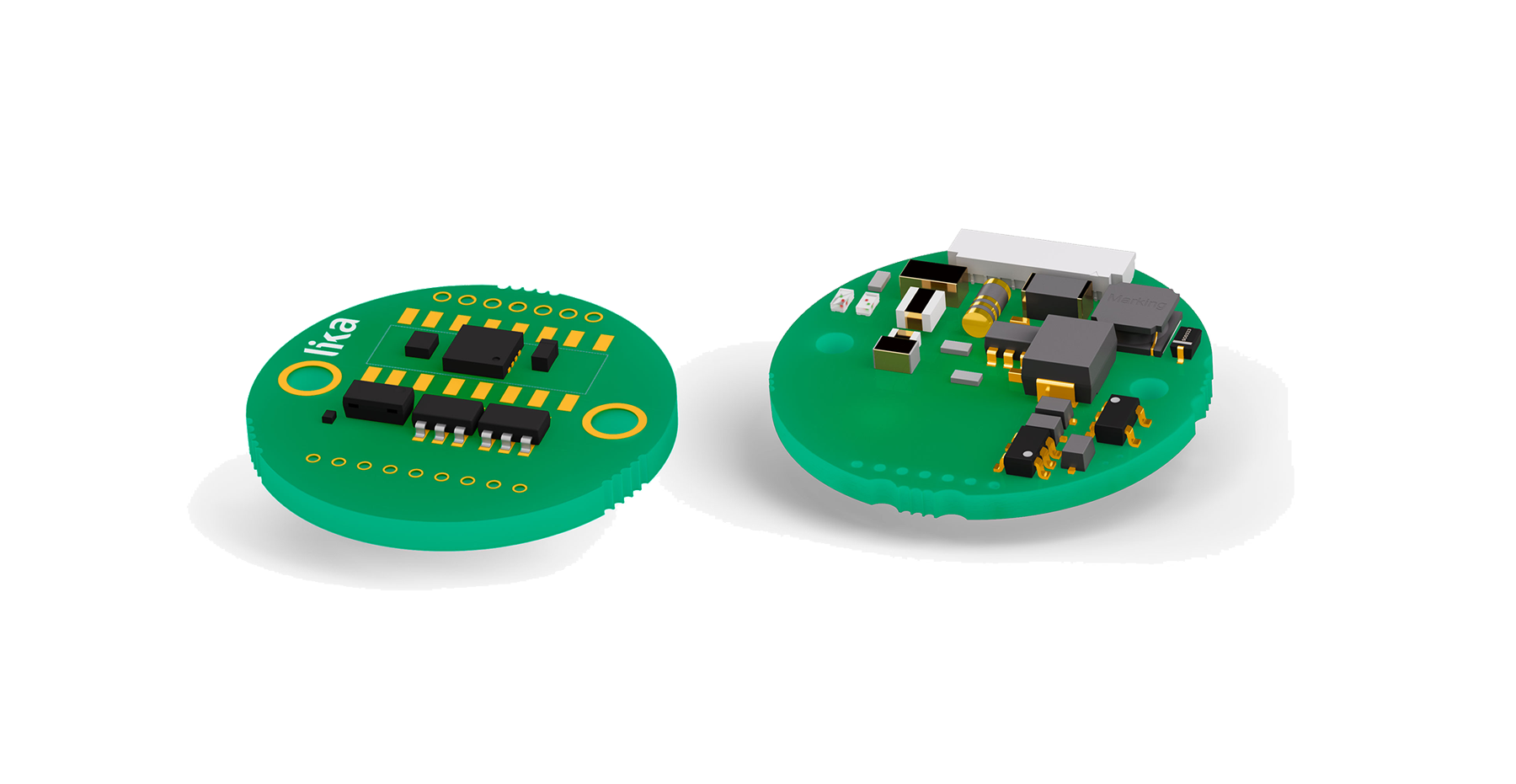

Miniature Modular Encoders for Use in Confined Installation Spaces
Modern automation is evolving towards faster, smarter, more connected, and more compact machines — a shift that is driving strong demand for high-performance, miniature encoders. In this context, Lika Electronic stands out by designing a varied and innovative range of miniature modular encoders -the AMM18, AMM20, and AMM24- tailored to up-to-date industry needs.
• Diameters ranging from only 18 to 24 mm
• Contactless and wear-free magnetic technology
• SSI and BiSS absolute interfaces
• Resolutions of up to 18 bits for single-turn and up to 25 bits for multi-turn
• Additional incremental output with a resolution of up to 20,000 PPR
• Customised solutions tailored to individual requirements

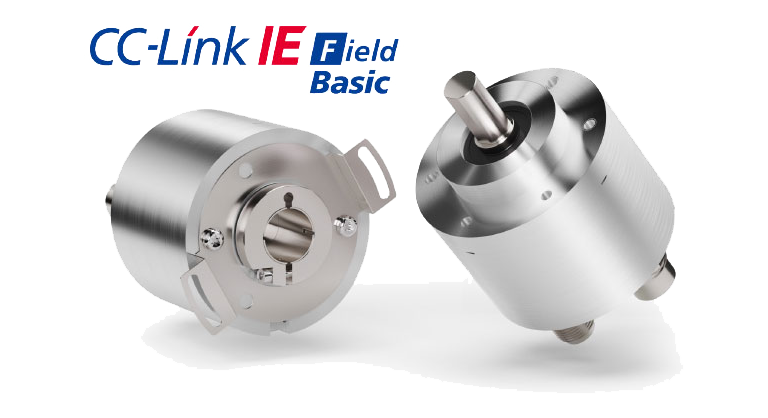

The EXM58 and EXO58 Ethernet encoders are certified for CC-Link
Committed every day to staying one step ahead and always close to its customers, Lika Electronic is the first and currently the only manufacturer to design encoders compatible with the CC-Link IE Field Basic network technology from the CC-Link Partner Association (CLPA).
• CC-Link IE Field Basic-certified encoders
• Easier 100 Mbit network connection and transparent SLMP communication
• Multi-turn versions incorporate the EHG (Energy Harvesting Generator) technology platform
• Precise optical or robust magnetic sensing technologies
• Solid and blind hollow shaft versions
• Integrated web server and firmware update functionalities
Find out more info on EXO58-EXM58 CC-Link
The SMA21 Absolute Linear Encoder Provides Sine/Cosine Signals
The SMA21 absolute linear encoder from Lika Electronic is ideal for demanding motion feedback applications requiring precise position and velocity control over long measuring lengths of up to 32.7 metres. 1Vpp Sine/Cosine analogue signals have now been added to the comprehensive range of available options.
• Compact readhead with IP67 protection
• Long measuring length of up to 32.7 m (107.28 ft)
• Resolution down to 1 µm
• BiSS-C, SSI, and Panasonic RS-485 absolute interfaces
• Additional sinusoidal or digital incremental signals for speed feedback
• With an error bit and a diagnostic LED

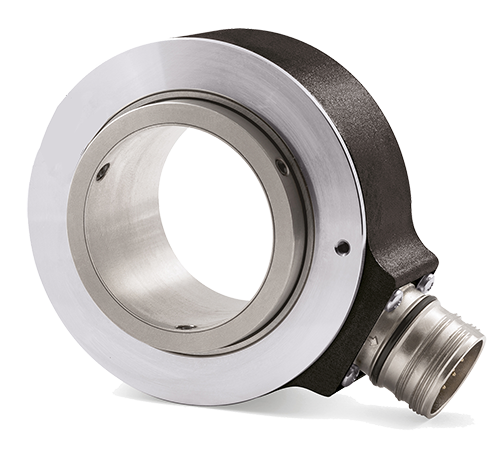

Lika's new C83 incremental encoder with a large Ø 45 mm through hollow shaft
Lika Electronic has unveiled its new C83 incremental encoder, specifically conceived for large-diameter drive shafts.
The C83 fits within a redesigned 87 mm (3.425 inches) diameter housing and features a new fixing plate to simplify installation on motor feedback systems and elevators.
• Large 45 mm (1.77 inches) thru-bore shaft with oversized bearings
• Resolution of up to 8,192 PPR
• Push-Pull, Line Driver, and Universal output circuits
• Designed for motor and elevator feedback applications

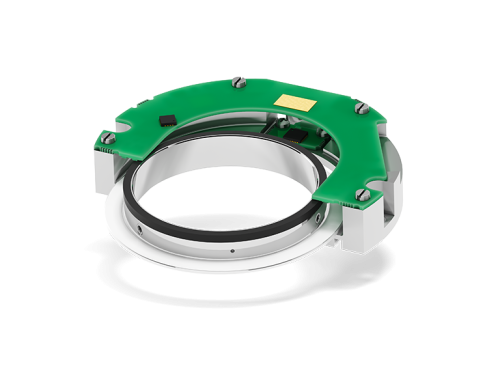

AMM80: Dedicated to Your Panasonic® Servo Drives and Logic Controllers
Panasonic® servo drives and programmable logic controllers are engineered with state-of-the-art technology and tailored to meet individual requirements.
The AMM80 kit encoder with Panasonic® RS-485 interface from Lika Electronic is their perfect complement in high-efficiency, high-performance automation systems.
Lika Electronic offers a diverse Xion of absolute encoders in both rotary and linear configurations, which can be equipped with the Panasonic® RS-485 interface.
Available rotary encoders include the AMM36, AMM5B, and AMM80 models, while linear encoders include the SMA2 and SMA21. Please contact us for further information.
LD Series Multi-Function Displays with Touchscreen
The range of LD multi-function process indicators from Lika Electronic includes six models designed to interface with analogue absolute encoders (LD210 model), SSI absolute encoders (LD220 model), and HTL/TTL incremental encoders, as well as NPN, PNP, NAMUR, and TRI-STATE sensors (LD350, LD355, LD360, and LD365 models).
• Multi-function process indicators featuring a touchscreen, three-color display.
• LD210 is designed to interface with current and voltage analogue encoders.
• LD220 is designed to interface with SSI single-turn and multi-turn encoders.
• LD350, LD355, LD360, and LD365 are designed to interface with HTL/TTL encoders, as well as NPN, PNP, NAMUR, and TRI-STATE sensors.
